3000# Forged Insert Stainless Steel Pipe Fittings - Socket Weld

(0)No Reviews yet
$3.72 to $242.83
SKU: 3MSWIN
Back
$3.72 to $242.83
Back

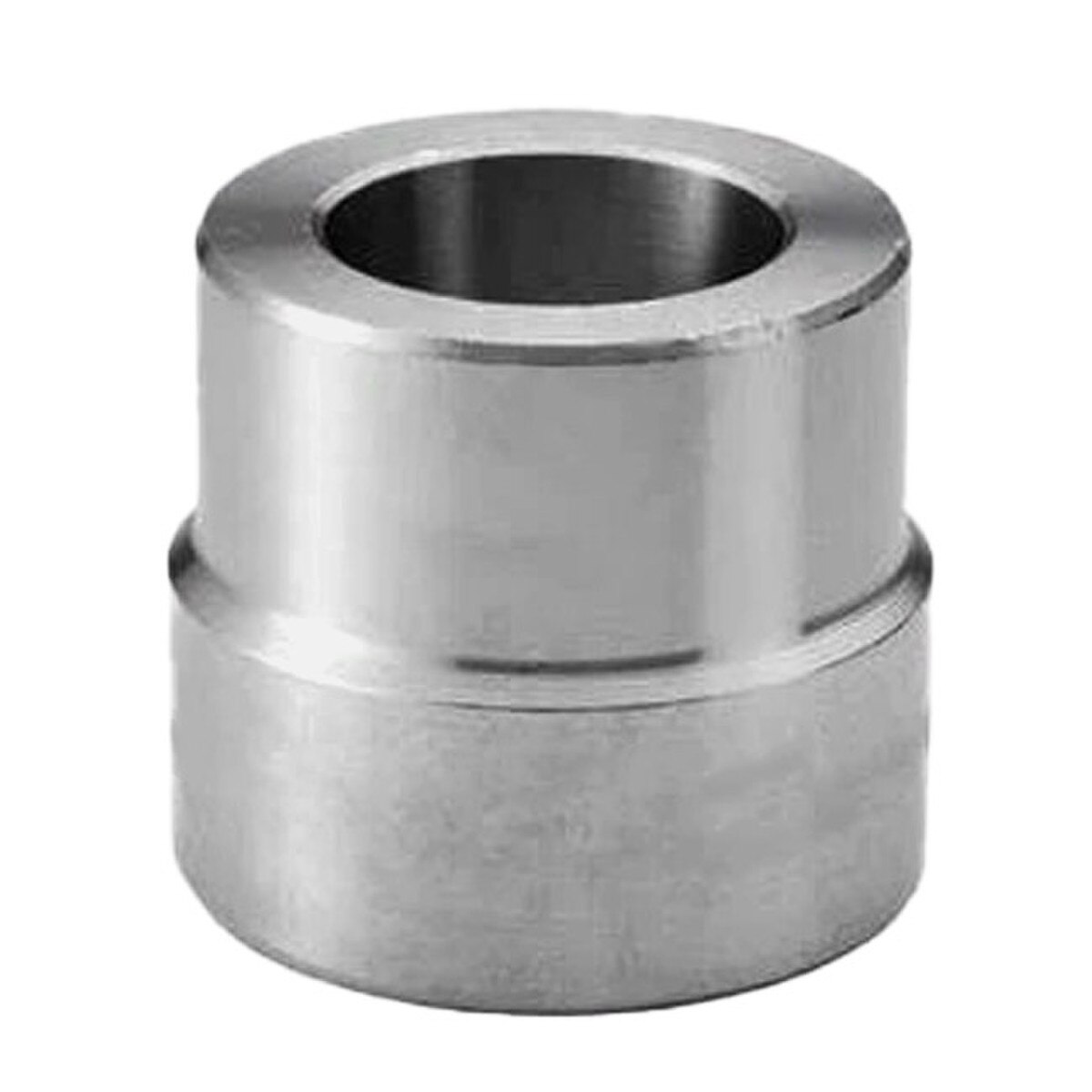

3000# insert pipe fittings forged out of stainless steel to ASTM 182 and ANSI B16.11 specifications with socket weld end connections. Available in 304 and 316 stainless steel alloys.

Back
Part
No.		Size
(in.)		TypeSocket
Dia. (B)		Depth
(K) Min.		Shank
Dia. (SD)		Laying
Length
(A)		Bore (D)Wall (C)
Min.		Length
(SL)		Length
(RL)		Material
3MSWIN4S-038-0253/8" x 1/4"10.56"
(14.2mm)		0.68"
(17.3mm)		0.39"
(9.9mm)		0.35"
(8.9mm)		0.15"
(3.8mm)		0.75"
(19.1mm)		0.55"
(14.0mm)		-304 SS
3MSWIN4S-050-0251/2" x 1/4"10.56"
(14.2mm)		0.84"
(21.3mm)		0.39"
(9.9mm)		0.35"
(8.9mm)		0.15"
(3.8mm)		0.83"
(21.1mm)		0.63"
(16.0mm)		-304 SS
3MSWIN4S-050-0381/2" x 3/8"10.70"
(17.8mm)		0.84"
(21.3mm)		0.39"
(9.9mm)		0.49"
(12.4mm)		0.16"
(4.1mm)		0.83"
(21.1mm)		0.63"
(16.0mm)		-304 SS
3MSWIN4S-075-0253/4" x 1/4"20.56"
(14.2mm)		1.05"
(26.7mm)		0.39"
(9.9mm)		0.35"
(8.9mm)		0.15"
(3.8mm)		0.71"
(18.0mm)		-1.06"
(26.9mm)		304 SS
3MSWIN4S-075-0383/4" x 3/8"20.70"
(17.8mm)		1.05"
(26.7mm)		0.39"
(9.9mm)		0.49"
(12.4mm)		0.16"
(4.1mm)		0.63"
(16.0mm)		-1.06"
(26.9mm)		304 SS
3MSWIN4S-075-0503/4" x 1/2"10.86"
(21.8mm)		1.05"
(26.7mm)		0.39"
(9.9mm)		0.63"
(16.0mm)		0.18"
(4.6mm)		0.87"
(22.1mm)		0.67"
(17.0mm)		-304 SS
3MSWIN4S-100-0251" x 1/4"20.56"
(14.2mm)		1.31"
(33.3mm)		0.39"
(9.9mm)		0.35"
(8.9mm)		0.15"
(3.8mm)		0.75"
(19.1mm)		-1.10"
(27.9mm)		304 SS
3MSWIN4S-100-0381" x 3/8"20.70"
(17.8mm)		1.31"
(33.3mm)		0.39"
(9.9mm)		0.49"
(12.4mm)		0.16"
(4.1mm)		0.71"
(18.0mm)		-1.10"
(27.9mm)		304 SS
3MSWIN4S-100-0501" x 1/2"20.86"
(21.8mm)		1.31"
(33.3mm)		0.39"
(9.9mm)		0.63"
(16.0mm)		0.18"
(4.6mm)		0.63"
(16.0mm)		-1.10"
(27.9mm)		304 SS
3MSWIN4S-100-0751" x 3/4"11.08"
(27.4mm)		1.31"
(33.3mm)		0.51"
(13.0mm)		0.83"
(21.1mm)		0.19"
(4.8mm)		0.94"
(23.9mm)		0.75"
(19.1mm)		-304 SS
3MSWIN4S-125-0251-1/4" x 1/4"20.56"
(14.2mm)		1.66"
(42.2mm)		0.39"
(9.9mm)		0.35"
(8.9mm)		0.15"
(3.8mm)		0.87"
(22.1mm)		-1.26"
(32.0mm)		304 SS
3MSWIN4S-125-0381-1/4" x 3/8"20.70"
(17.8mm)		1.66"
(42.2mm)		0.39"
(9.9mm)		0.49"
(12.4mm)		0.16"
(4.1mm)		0.83"
(21.1mm)		-1.26"
(32.0mm)		304 SS
3MSWIN4S-125-0501-1/4" x 1/2"20.86"
(21.8mm)		1.66"
(42.2mm)		0.39"
(9.9mm)		0.63"
(16.0mm)		0.18"
(4.6mm)		0.75"
(19.1mm)		-1.26"
(32.0mm)		304 SS
3MSWIN4S-125-0751-1/4" x 3/4"21.08"
(27.4mm)		1.66"
(42.2mm)		0.51"
(13.0mm)		0.83"
(21.1mm)		0.19"
(4.8mm)		0.71"
(18.0mm)		-1.26"
(32.0mm)		304 SS
3MSWIN4S-125-1001-1/4" x 1"11.34"
(34.0mm)		1.66"
(42.2mm)		0.51"
(13.0mm)		1.04"
(26.4mm)		0.22"
(5.6mm)		0.98"
(24.9mm)		0.83"
(21.1mm)		-304 SS
3MSWIN4S-150-0381-1/2" x 3/8"20.70"
(17.8mm)		1.90"
(48.3mm)		0.39"
(9.9mm)		0.49"
(12.4mm)		0.16"
(4.1mm)		0.87"
(22.1mm)		-1.30"
(33.0mm)		304 SS
3MSWIN4S-150-0501-1/2" x 1/2"20.86"
(21.8mm)		1.90"
(48.3mm)		0.39"
(9.9mm)		0.63"
(16.0mm)		0.18"
(4.6mm)		0.83"
(21.1mm)		-1.30"
(33.0mm)		304 SS
3MSWIN4S-150-0751-1/2" x 3/4"21.08"
(27.4mm)		1.90"
(48.3mm)		0.51"
(13.0mm)		0.83"
(21.1mm)		0.19"
(4.8mm)		0.75"
(19.1mm)		-1.30"
(33.0mm)		304 SS
3MSWIN4S-150-1001-1/2" x 1"21.34"
(34.0mm)		1.90"
(48.3mm)		0.51"
(13.0mm)		1.04"
(26.4mm)		0.22"
(5.6mm)		0.71"
(18.0mm)		-1.30"
(33.0mm)		304 SS
3MSWIN4S-150-1251-1/2" x 1-1/4"11.69"
(42.9mm)		1.90"
(48.3mm)		0.51"
(13.0mm)		1.38"
(35.1mm)		0.24"
(6.1mm)		1.10"
(27.9mm)		0.87"
(22.1mm)		-304 SS
3MSWIN4S-200-0502" x 1/2"20.86"
(21.8mm)		2.37"
(60.2mm)		0.39"
(9.9mm)		0.62"
(15.7mm)		0.18"
(4.6mm)		0.98"
(24.9mm)		-1.50"
(38.1mm)		304 SS
3MSWIN4S-200-0752" x 3/4"21.08"
(27.4mm)		2.38"
(60.5mm)		0.51"
(13.0mm)		0.83"
(21.1mm)		0.19"
(4.8mm)		0.94"
(23.9mm)		-1.50"
(38.1mm)		304 SS
3MSWIN4S-200-1002" x 1"21.34"
(34.0mm)		2.38"
(60.5mm)		0.51"
(13.0mm)		1.04"
(26.4mm)		0.22"
(5.6mm)		0.87"
(22.1mm)		-1.50"
(38.1mm)		304 SS
3MSWIN4S-200-1252" x 1-1/4"21.69"
(42.9mm)		2.38"
(60.5mm)		0.51"
(13.0mm)		1.38"
(35.1mm)		0.24"
(6.1mm)		0.83"
(21.1mm)		-1.50"
(38.1mm)		304 SS
3MSWIN4S-200-1502" x 1-1/2"11.93"
(49.0mm)		2.38"
(60.5mm)		0.51"
(13.0mm)		1.61"
(40.9mm)		0.25"
(6.4mm)		1.26"
(32.0mm)		0.98"
(24.9mm)		-304 SS
3MSWIN6S-038-0253/8" x 1/4"10.56"
(14.2mm)		0.68"
(17.3mm)		0.39"
(9.9mm)		0.35"
(8.9mm)		0.15"
(3.8mm)		0.75"
(19.1mm)		0.55"
(14.0mm)		-316 SS
3MSWIN6S-050-0251/2" x 1/4"10.56"
(14.2mm)		0.84"
(21.3mm)		0.39"
(9.9mm)		0.35"
(8.9mm)		0.15"
(3.8mm)		0.83"
(21.1mm)		0.63"
(16.0mm)		-316 SS
3MSWIN6S-050-0381/2" x 3/8"10.70"
(17.8mm)		0.84"
(21.3mm)		0.39"
(9.9mm)		0.49"
(12.4mm)		0.16"
(4.1mm)		0.83"
(21.1mm)		0.63"
(16.0mm)		-316 SS
3MSWIN6S-075-0253/4" x 1/4"20.56"
(14.2mm)		1.05"
(26.7mm)		0.39"
(9.9mm)		0.35"
(8.9mm)		0.15"
(3.8mm)		0.71"
(18.0mm)		-1.06"
(26.9mm)		316 SS
3MSWIN6S-075-0383/4" x 3/8"20.70"
(17.8mm)		1.05"
(26.7mm)		0.39"
(9.9mm)		0.49"
(12.4mm)		0.16"
(4.1mm)		0.63"
(16.0mm)		-1.06"
(26.9mm)		316 SS
3MSWIN6S-075-0503/4" x 1/2"10.86"
(21.8mm)		1.05"
(26.7mm)		0.39"
(9.9mm)		0.63"
(16.0mm)		0.18"
(4.6mm)		0.87"
(22.1mm)		0.67"
(17.0mm)		-316 SS
3MSWIN6S-100-0251" x 1/4"20.56"
(14.2mm)		1.31"
(33.3mm)		0.39"
(9.9mm)		0.35"
(8.9mm)		0.15"
(3.8mm)		0.75"
(19.1mm)		-1.10"
(27.9mm)		316 SS
3MSWIN6S-100-0381" x 3/8"20.70"
(17.8mm)		1.31"
(33.3mm)		0.39"
(9.9mm)		0.49"
(12.4mm)		0.16"
(4.1mm)		0.71"
(18.0mm)		-1.10"
(27.9mm)		316 SS
3MSWIN6S-100-0501" x 1/2"20.86"
(21.8mm)		1.31"
(33.3mm)		0.39"
(9.9mm)		0.63"
(16.0mm)		0.18"
(4.6mm)		0.63"
(16.0mm)		-1.10"
(27.9mm)		316 SS
3MSWIN6S-100-0751" x 3/4"11.08"
(27.4mm)		1.31"
(33.3mm)		0.51"
(13.0mm)		0.83"
(21.1mm)		0.19"
(4.8mm)		0.94"
(23.9mm)		0.75"
(19.1mm)		-316 SS
3MSWIN6S-125-0251-1/4" x 1/4"20.56"
(14.2mm)		1.66"
(42.2mm)		0.39"
(9.9mm)		0.35"
(8.9mm)		0.15"
(3.8mm)		0.87"
(22.1mm)		-1.26"
(32.0mm)		316 SS
3MSWIN6S-125-0381-1/4" x 3/8"20.70"
(17.8mm)		1.66"
(42.2mm)		0.39"
(9.9mm)		0.49"
(12.4mm)		0.16"
(4.1mm)		0.83"
(21.1mm)		-1.26"
(32.0mm)		316 SS
3MSWIN6S-125-0501-1/4" x 1/2"20.86"
(21.8mm)		1.66"
(42.2mm)		0.39"
(9.9mm)		0.63"
(16.0mm)		0.18"
(4.6mm)		0.75"
(19.1mm)		-1.26"
(32.0mm)		316 SS
3MSWIN6S-125-0751-1/4" x 3/4"21.08"
(27.4mm)		1.66"
(42.2mm)		0.51"
(13.0mm)		0.83"
(21.1mm)		0.19"
(4.8mm)		0.71"
(18.0mm)		-1.26"
(32.0mm)		316 SS
3MSWIN6S-125-1001-1/4" x 1"11.34"
(34.0mm)		1.66"
(42.2mm)		0.51"
(13.0mm)		1.04"
(26.4mm)		0.22"
(5.6mm)		0.98"
(24.9mm)		0.83"
(21.1mm)		-316 SS
3MSWIN6S-150-0381-1/2" x 3/8"20.70"
(17.8mm)		1.90"
(48.3mm)		0.39"
(9.9mm)		0.49"
(12.4mm)		0.16"
(4.1mm)		0.87"
(22.1mm)		-1.30"
(33.0mm)		316 SS
3MSWIN6S-150-0501-1/2" x 1/2"20.86"
(21.8mm)		1.90"
(48.3mm)		0.39"
(9.9mm)		0.63"
(16.0mm)		0.18"
(4.6mm)		0.83"
(21.1mm)		-1.30"
(33.0mm)		316 SS
3MSWIN6S-150-0751-1/2" x 3/4"21.08"
(27.4mm)		1.90"
(48.3mm)		0.51"
(13.0mm)		0.83"
(21.1mm)		0.19"
(4.8mm)		0.75"
(19.1mm)		-1.30"
(33.0mm)		316 SS
3MSWIN6S-150-1001-1/2" x 1"21.34"
(34.0mm)		1.90"
(48.3mm)		0.51"
(13.0mm)		1.04"
(26.4mm)		0.22"
(5.6mm)		0.71"
(18.0mm)		-1.30"
(33.0mm)		316 SS
3MSWIN6S-150-1251-1/2" x 1-1/4"11.69"
(42.9mm)		1.90"
(48.3mm)		0.51"
(13.0mm)		1.38"
(35.1mm)		0.24"
(6.1mm)		1.10"
(27.9mm)		0.87"
(22.1mm)		-316 SS
3MSWIN6S-200-0502" x 1/2"20.86"
(21.8mm)		2.37"
(60.2mm)		0.39"
(9.9mm)		0.62"
(15.7mm)		0.18"
(4.6mm)		0.98"
(24.9mm)		-1.50"
(38.1mm)		316 SS
3MSWIN6S-200-0752" x 3/4"21.08"
(27.4mm)		2.38"
(60.5mm)		0.51"
(13.0mm)		0.83"
(21.1mm)		0.19"
(4.8mm)		0.94"
(23.9mm)		-1.50"
(38.1mm)		316 SS
3MSWIN6S-200-1002" x 1"21.34"
(34.0mm)		2.38"
(60.5mm)		0.51"
(13.0mm)		1.04"
(26.4mm)		0.22"
(5.6mm)		0.87"
(22.1mm)		-1.50"
(38.1mm)		316 SS
3MSWIN6S-200-1252" x 1-1/4"21.69"
(42.9mm)		2.38"
(60.5mm)		0.51"
(13.0mm)		1.38"
(35.1mm)		0.24"
(6.1mm)		0.83"
(21.1mm)		-1.50"
(38.1mm)		316 SS
3MSWIN6S-200-1502" x 1-1/2"11.93"
(49.0mm)		2.38"
(60.5mm)		0.51"
(13.0mm)		1.61"
(40.9mm)		0.25"
(6.4mm)		1.26"
(32.0mm)		0.98"
(24.9mm)		-316 SS
