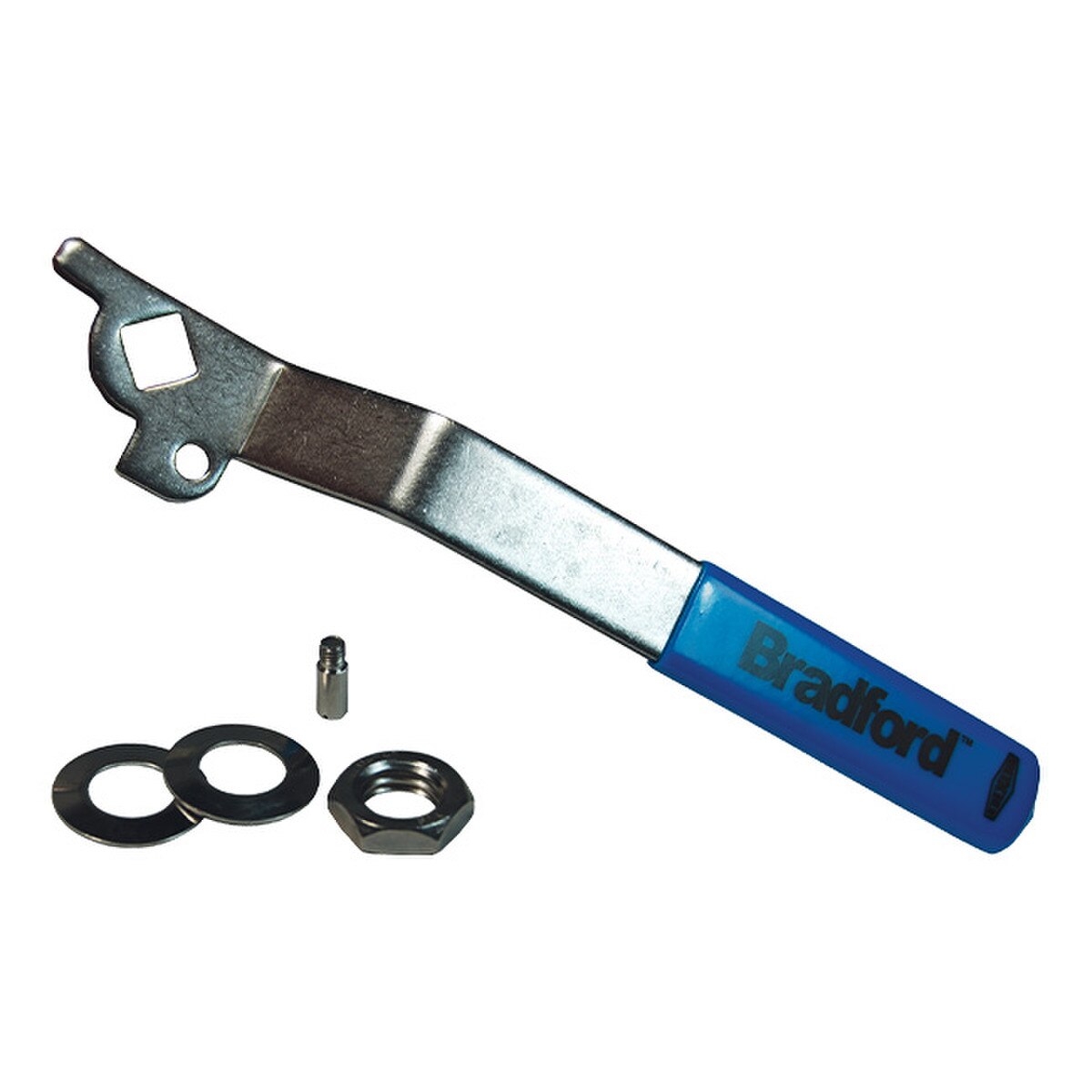

3 and 4-Way (BV3 & BV4) Ball Valve Handle Kit
Handle Kit for 3 and 4-Way Ball Valves.
- Handle Kit Contains:
- 1 Handle Washer
- 1 Handle Head
- 1 Nut
 | |||||||
| Size | A | B | C | D | E | F | Weight (lbs.) |
|---|---|---|---|---|---|---|---|
| 1/2" | 4.9 | 3.2 | 4.6 | F03 | F04 | 9 | 3.6 |
| 3/4" | 4.9 | 4.3 | 5.1 | F03 | F04 | 9 | 4.3 |
| 1" | 5.6 | 3.8 | 6.0 | F04 | F05 | 11 | 6.8 |
| 1 1/2" | 9.5 | 4.5 | 6.9 | F05 | F07 | 14 | 12.6 |
| 2" | 9.5 | 5.0 | 7.5 | F05 | F07 | 14 | 21.6 |
| 2 1/2" | 18.0 | 5.3 | 8.4 | F07 | F10 | 17 | 33.7 |
| 3" | 18.0 | 6.4 | 9.6 | F10 | F12 | 22 | 56.4 |
| 4" | 18.0 | 6.8 | 11.5 | F10 | F12 | 22 | 85.4 |
| Part Number | Size |
| BV-23-HA050-075 | 1/2" - 3/4" |
| BV-23-HA100 | 1" |
| BV-23-HA150-200 | 1 1/2" - 2" |
| BV-23-HA250 | 2 1/2" |
| BV-23-HA300-400 | 3" - 4" |
