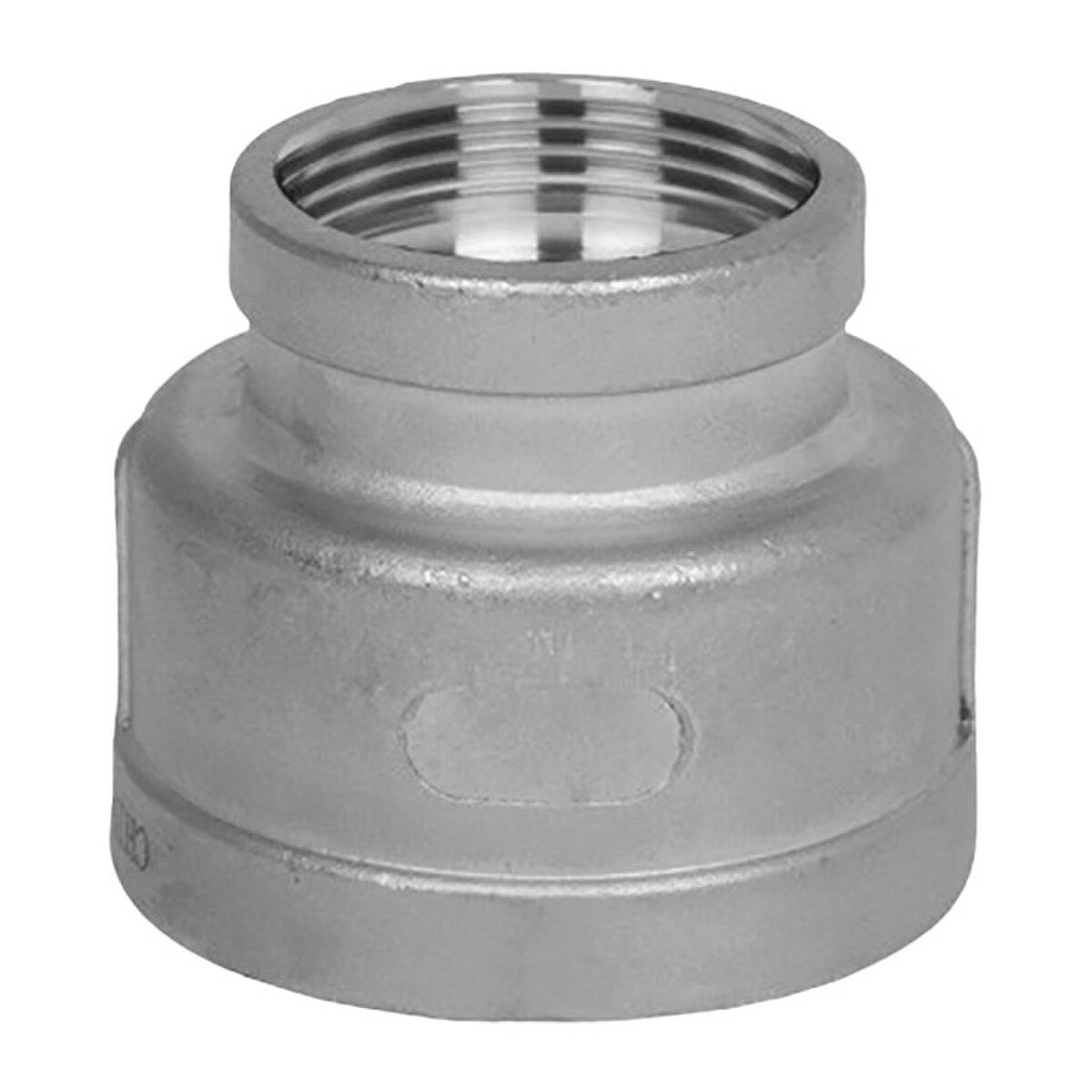

150# Cast NPT Threaded Pipe Reducing Couplings - Stainless Steel

Name: 150# Cast NPT Threaded Pipe Reducing Couplings - Stainless Steel
SKU: 150THRC
Availability: PreOrder

(0)No Reviews yet

$3.12 to $143.84

Quantity	Price

SKU: 150THRC

Quantity

Back

150# investment cast pipe reducing couplings with threaded end connections available in 304 and 316 stainless steel. Manufactured to A182 specification.

Back

Part #	Size (NPT)	D1	D2	D3	C1	H1	d1	d2	d3	C2	H2	L1	L	I	Material

150THRC4S-025-013	1/4"x1/8"	0.25" (6.4mm)	0.79" (20.1mm)	0.71" (18.0mm)	0.31" (7.9mm)	0.24" (6.1mm)	0.125" (3.2mm)	0.63" (16.0mm)	0.55" (14.0mm)	0.43" (10.9mm)	0.28" (7.1mm)	0.63" (16.0mm)	1.12" (28.4mm)	0.12" (3.0mm)	304 SS
150THRC4S-038-013	3/8"x1/8"	0.375" (9.5mm)	1.00" (25.4mm)	0.91" (23.1mm)	0.37" (9.4mm)	0.28" (7.1mm)	0.125" (3.2mm)	0.63" (16.0mm)	0.55" (14.0mm)	0.47" (11.9mm)	0.24" (6.1mm)	0.91" (23.1mm)	1.61" (40.9mm)	0.12" (3.0mm)	304 SS
150THRC4S-038-025	3/8"x1/4"	0.375" (9.5mm)	1.00" (25.4mm)	0.91" (23.1mm)	0.38" (9.7mm)	0.28" (7.1mm)	0.25" (6.4mm)	0.79" (20.1mm)	0.71" (18.0mm)	0.51" (13.0mm)	0.24" (6.1mm)	0.91" (23.1mm)	1.61" (40.9mm)	0.12" (3.0mm)	304 SS
150THRC4S-050-013	1/2"x1/8"	0.5" (12.7mm)	1.18" (30.0mm)	1.10" (27.9mm)	0.39" (9.9mm)	0.31" (7.9mm)	0.125" (3.2mm)	0.63" (16.0mm)	0.55" (14.0mm)	0.35" (8.9mm)	0.28" (7.1mm)	0.94" (23.9mm)	1.77" (45.0mm)	0.10" (2.5mm)	304 SS
150THRC4S-050-025	1/2"x1/4"	0.5" (12.7mm)	1.18" (30.0mm)	1.10" (27.9mm)	0.39" (9.9mm)	0.31" (7.9mm)	0.25" (6.4mm)	0.79" (20.1mm)	0.71" (18.0mm)	0.39" (9.9mm)	0.28" (7.1mm)	0.94" (23.9mm)	1.77" (45.0mm)	0.10" (2.5mm)	304 SS
150THRC4S-050-038	1/2"x3/8"	0.5" (12.7mm)	1.18" (30.0mm)	1.10" (27.9mm)	0.39" (9.9mm)	0.31" (7.9mm)	0.375" (9.5mm)	1.00" (25.4mm)	0.91" (23.1mm)	0.39" (9.9mm)	0.31" (7.9mm)	0.94" (23.9mm)	1.77" (45.0mm)	0.10" (2.5mm)	304 SS
150THRC4S-075-013	3/4"x1/8"	0.75" (19.1mm)	1.42" (36.1mm)	1.30" (33.0mm)	0.39" (9.9mm)	0.35" (8.9mm)	0.125" (3.2mm)	0.63" (16.0mm)	0.55" (14mm)	0.43" (10.9mm)	0.31" (7.9mm)	0.87" (22.1mm)	1.77" (45.0mm)	0.12" (3.0mm)	304 SS
150THRC4S-075-025	3/4"x1/4"	0.75" (19.1mm)	1.42" (36.1mm)	1.30" (33.0mm)	0.39" (9.9mm)	0.35" (8.9mm)	0.25" (6.4mm)	0.79" (20.1mm)	0.71" (18.0mm)	0.43" (10.9mm)	0.31" (7.9mm)	1.02" (25.9mm)	1.77" (45.0mm)	0.12" (3.0mm)	304 SS
150THRC4S-075-038	3/4"x3/8"	0.75" (19.1mm)	1.42" (36.1mm)	1.30" (33.0mm)	0.39" (9.9mm)	0.35" (8.9mm)	0.375" (9.5mm)	1.00" (25.4mm)	0.91" (23.1mm)	0.59" (15.0mm)	0.31" (7.9mm)	0.98" (24.9mm)	1.77" (45.0mm)	0.12" (3.0mm)	304 SS
150THRC4S-075-050	3/4"x1/2"	0.75" (19.1mm)	1.42" (36.1mm)	1.30" (33.0mm)	0.39" (9.9mm)	0.35" (8.9mm)	0.5" (12.7mm)	1.18" (30.0mm)	1.10" (27.9mm)	0.59" (15.0mm)	0.31" (7.9mm)	0.98" (24.9mm)	1.77" (45.0mm)	0.12" (3.0mm)	304 SS
150THRC4S-100-013	1"x1/8"	1" (25.4mm)	1.77" (45.0mm)	1.65" (41.9mm)	0.55" (14.0mm)	0.35" (8.9mm)	0.125" (3.2mm)	0.63" (16.0mm)	0.55" (14.0mm)	0.47" (11.9mm)	0.31" (7.9mm)	1.02" (25.9mm)	1.97" (50.0mm)	0.12" (3.0mm)	304 SS
150THRC4S-100-025	1"x1/4"	1" (25.4mm)	1.77" (45.0mm)	1.65" (41.9mm)	0.55" (14.0mm)	0.43" (10.9mm)	0.25" (6.4mm)	0.79" (20.1mm)	0.71" (18.0mm)	0.47" (11.9mm)	0.31" (7.9mm)	1.10" (27.9mm)	1.97" (50.0mm)	0.12" (3.0mm)	304 SS
150THRC4S-100-038	1"x3/8"	1" (25.4mm)	1.77" (45.0mm)	1.65" (41.9mm)	0.55" (14.0mm)	0.43" (10.9mm)	0.375" (9.5mm)	1.00" (25.4mm)	0.91" (23.1mm)	0.51" (13.0mm)	0.31" (7.9mm)	1.10" (27.9mm)	1.97" (50.0mm)	0.12" (3.0mm)	304 SS
150THRC4S-100-050	1"x1/2"	1" (25.4mm)	1.77" (45.0mm)	1.65" (41.9mm)	0.55" (14.0mm)	0.43" (10.9mm)	0.5" (12.7mm)	1.18" (30.0mm)	1.10" (27.9mm)	0.51" (13.0mm)	0.35" (8.9mm)	1.14" (29.0mm)	1.97" (50.0mm)	0.12" (3.0mm)	304 SS
150THRC4S-100-075	1"x3/4"	1" (25.4mm)	1.77" (45.0mm)	1.65" (41.9mm)	0.55" (14.0mm)	0.43" (10.9mm)	0.75" (19.1mm)	1.42" (36.1mm)	1.30" (33.0mm)	0.55" (14.0mm)	0.43" (10.9mm)	1.10" (27.9mm)	1.97" (50.0mm)	0.12" (3.0mm)	304 SS
150THRC4S-125-025	1-1/4"x1/4"	1.25" (31.8mm)	2.09" (53.1mm)	1.97" (50.0mm)	0.71" (18.0mm)	0.43" (10.9mm)	0.25" (6.4mm)	0.79" (20.1mm)	0.71" (18.0mm)	0.59" (15.0mm)	0.24" (6.1mm)	1.14" (29.0mm)	1.97" (50.0mm)	0.14" (3.6mm)	304 SS
150THRC4S-125-038	1-1/4"x3/8"	1.25" (31.8mm)	2.09" (53.1mm)	1.97" (50.0mm)	0.71" (18.0mm)	0.43" (10.9mm)	0.375" (9.5mm)	1.00" (25.4mm)	0.91" (23.1mm)	0.47" (11.9mm)	0.31" (7.9mm)	1.14" (29.0mm)	1.97" (50.0mm)	0.14" (3.6mm)	304 SS
150THRC4S-125-050	1-1/4"x1/2"	1.25" (31.8mm)	2.09" (53.1mm)	1.97" (50.0mm)	0.63" (16.0mm)	0.43" (10.9mm)	0.5" (12.7mm)	1.18" (30.0mm)	1.10" (27.9mm)	0.51" (13.0mm)	0.39" (9.9mm)	1.18" (30.0mm)	1.97" (50.0mm)	0.14" (3.6mm)	304 SS
150THRC4S-125-075	1-1/4"x3/4"	1.25" (31.8mm)	2.09" (53.1mm)	1.97" (50.0mm)	0.63" (16.0mm)	0.47" (11.9mm)	0.75" (19.1mm)	1.42" (36.1mm)	1.30" (33.0mm)	0.51" (13.0mm)	0.39" (9.9mm)	1.18" (30.0mm)	1.97" (50.0mm)	0.14" (3.6mm)	304 SS
150THRC4S-125-100	1-1/4"x1"	1.25" (31.8mm)	2.09" (53.1mm)	1.97" (50.0mm)	0.63" (16.0mm)	0.47" (11.9mm)	1" (25.4mm)	1.77" (45.0mm)	1.61" (40.9mm)	0.71" (18.0mm)	0.43" (10.9mm)	1.18" (30.0mm)	1.97" (50.0mm)	0.14" (3.6mm)	304 SS
150THRC4S-150-025	1-1/2"x1/4"	1.5" (38.1mm)	2.36" (59.9mm)	2.22" (56.4mm)	0.71" (18.0mm)	0.47" (11.9mm)	0.25" (6.4mm)	0.79" (20.1mm)	0.71" (18.0mm)	0.71" (18.0mm)	0.24" (6.1mm)	1.22" (31.0mm)	2.24" (56.9mm)	0.14" (3.6mm)	304 SS
150THRC4S-150-038	1-1/2"x3/8"	1.5" (38.1mm)	2.36" (59.9mm)	2.22" (56.4mm)	0.71" (18.0mm)	0.47" (11.9mm)	0.375" (9.5mm)	1.00" (25.4mm)	0.91" (23.1mm)	0.71" (18.0mm)	0.31" (7.9mm)	1.22" (31.0mm)	2.24" (56.9mm)	0.14" (3.6mm)	304 SS
150THRC4S-150-050	1-1/2"x1/2"	1.5" (38.1mm)	2.36" (59.9mm)	2.22" (56.4mm)	0.63" (16.0mm)	0.47" (11.9mm)	0.5" (12.7mm)	1.18" (30.0mm)	1.10" (27.9mm)	0.57" (14.5mm)	0.35" (8.9mm)	1.22" (31.0mm)	2.24" (56.9mm)	0.14" (3.6mm)	304 SS
150THRC4S-150-075	1-1/2"x3/4"	1.5" (38.1mm)	2.36" (59.9mm)	2.22" (56.4mm)	0.63" (16.0mm)	0.47" (11.9mm)	0.75" (19.1mm)	1.42" (36.1mm)	1.30" (33.0mm)	0.61" (15.5mm)	0.39" (9.9mm)	1.22" (31.0mm)	2.24" (56.9mm)	0.14" (3.6mm)	304 SS
150THRC4S-150-100	1-1/2"x1"	1.5" (38.1mm)	2.36" (59.9mm)	2.22" (56.4mm)	0.63" (16.0mm)	0.47" (11.9mm)	1" (25.4mm)	1.77" (45.0mm)	1.61" (40.9mm)	0.67" (17.0mm)	0.43" (10.9mm)	1.22" (31.0mm)	2.24" (56.9mm)	0.14" (3.6mm)	304 SS
150THRC4S-150-125	1-1/2"x1-1/4"	1.5" (38.1mm)	2.36" (59.9mm)	2.22" (56.4mm)	0.71" (18.0mm)	0.47" (11.9mm)	1.25" (31.8mm)	2.09" (53.1mm)	1.97" (50.0mm)	0.67" (17.0mm)	0.47" (11.9mm)	1.22" (31.0mm)	2.24" (56.9mm)	0.14" (3.6mm)	304 SS
150THRC4S-200-025	2"x1/4"	2" (50.8mm)	2.91" (73.9mm)	2.76" (70.1mm)	0.71" (18.0mm)	0.51" (13.0mm)	0.25" (6.4mm)	0.79" (20.1mm)	0.71" (18.0mm)	0.63" (16.0mm)	0.20" (5.1mm)	1.50" (38.1mm)	2.64" (67.1mm)	0.16" (4.1mm)	304 SS
150THRC4S-200-038	2"x3/8"	2" (50.8mm)	2.91" (73.9mm)	2.76" (70.1mm)	0.71" (18.0mm)	0.51" (13.0mm)	0.375" (9.5mm)	1.00" (25.4mm)	0.91" (23.1mm)	0.51" (13.0mm)	0.31" (7.9mm)	1.50" (38.1mm)	2.64" (67.1mm)	0.16" (4.1mm)	304 SS
150THRC4S-200-050	2"x1/2"	2" (50.8mm)	2.91" (73.9mm)	2.76" (70.1mm)	0.71" (18.0mm)	0.51" (13.0mm)	0.5" (12.7mm)	1.18" (30.0mm)	1.10" (27.9mm)	0.59" (15.0mm)	0.35" (8.9mm)	1.50" (38.1mm)	2.64" (67.1mm)	0.16" (4.1mm)	304 SS
150THRC4S-200-075	2"x3/4"	2" (50.8mm)	2.91" (73.9mm)	2.76" (70.1mm)	0.71" (18.0mm)	0.51" (13.0mm)	0.75" (19.1mm)	1.42" (36.1mm)	1.30" (33.0mm)	0.69" (17.5mm)	0.39" (9.9mm)	1.50" (38.1mm)	2.64" (67.1mm)	0.16" (4.1mm)	304 SS
150THRC4S-200-100	2"x1"	2" (50.8mm)	2.91" (73.9mm)	2.76" (70.1mm)	0.63" (16.0mm)	0.51" (13.0mm)	1" (25.4mm)	1.77" (45.0mm)	1.61" (40.9mm)	0.67" (17.0mm)	0.43" (10.9mm)	1.50" (38.1mm)	2.64" (67.1mm)	0.16" (4.1mm)	304 SS
150THRC4S-200-125	2"x1-1/4"	2" (50.8mm)	2.91" (73.9mm)	2.76" (70.1mm)	0.71" (18.0mm)	0.51" (13.0mm)	1.25" (31.8mm)	2.09" (53.1mm)	1.97" (50.0mm)	0.67" (17.0mm)	0.47" (11.9mm)	1.50" (38.1mm)	2.64" (67.1mm)	0.16" (4.1mm)	304 SS
150THRC4S-200-150	2"x1-1/2"	2" (50.8mm)	2.91" (73.9mm)	2.76" (70.1mm)	0.71" (18.0mm)	0.55" (14.0mm)	1.5" (38.1mm)	2.36" (59.9mm)	2.22" (56.4mm)	0.59" (15.0mm)	0.47" (11.9mm)	1.57" (39.9mm)	2.64" (67.1mm)	0.16" (4.1mm)	304 SS
150THRC4S-250-075	2-1/2"x3/4"	2.5" (63.5mm)	3.54" (89.9mm)	3.39" (86.1mm)	0.91" (23.1mm)	0.55" (14.0mm)	0.75" (19.1mm)	1.42" (36.1mm)	1.30" (33.0mm)	0.75" (19.1mm)	0.35" (8.9mm)	1.69" (42.9mm)	2.99" (75.9mm)	0.26" (6.6mm)	304 SS
150THRC4S-250-100	2-1/2"x1"	2.5" (63.5mm)	3.54" (89.9mm)	3.39" (86.1mm)	0.91" (23.1mm)	0.55" (14.0mm)	1" (25.4mm)	1.77" (45.0mm)	1.61" (40.9mm)	0.75" (19.1mm)	0.43" (10.9mm)	1.69" (42.9mm)	2.99" (75.9mm)	0.26" (6.6mm)	304 SS
150THRC4S-250-125	2-1/2"x1-1/4"	2.5" (63.5mm)	3.54" (89.9mm)	3.39" (86.1mm)	0.91" (23.1mm)	0.55" (14.0mm)	1.25" (31.8mm)	2.09" (53.1mm)	1.97" (50.0mm)	0.87" (22.1mm)	0.47" (11.9mm)	1.69" (42.9mm)	2.99" (75.9mm)	0.26" (6.6mm)	304 SS
150THRC4S-250-150	2-1/2"x1-1/2"	2.5" (63.5mm)	3.54" (89.9mm)	3.39" (86.1mm)	0.91" (23.1mm)	0.59" (15.0mm)	1.5" (38.1mm)	2.36" (59.9mm)	2.22" (56.4mm)	0.91" (23.1mm)	0.47" (11.9mm)	1.69" (42.9mm)	2.99" (75.9mm)	0.26" (6.6mm)	304 SS
150THRC4S-250-200	2-1/2"x2"	2.5" (63.5mm)	3.54" (89.9mm)	3.39" (86.1mm)	0.91" (23.1mm)	0.55" (14.0mm)	2" (50.8mm)	2.91" (73.9mm)	2.76" (70.1mm)	0.87" (22.1mm)	0.55" (14.0mm)	1.69" (42.9mm)	2.99" (75.9mm)	0.26" (6.6mm)	304 SS
150THRC4S-300-075	3"x3/4"	3" (76.2mm)	4.29" (109.0mm)	4.09" (103.9mm)	0.94" (23.9mm)	0.59" (15.0mm)	0.75" (19.1mm)	1.42" (36.1mm)	1.30" (33.0mm)	0.55" (14.0mm)	0.39" (9.9mm)	1.93" (49.0mm)	3.35" (85.1mm)	0.26" (6.6mm)	304 SS
150THRC4S-300-100	3"x1"	3" (76.2mm)	4.29" (109.0mm)	4.09" (103.9mm)	0.94" (23.9mm)	0.59" (15.0mm)	1" (25.4mm)	1.77" (45.0mm)	1.61" (40.9mm)	0.63" (16.0mm)	0.43" (10.9mm)	1.93" (49.0mm)	3.31" (84.1mm)	0.26" (6.6mm)	304 SS
150THRC4S-300-125	3"x1-1/4"	3" (76.2mm)	4.29" (109.0mm)	4.09" (103.9mm)	0.94" (23.9mm)	0.59" (15.0mm)	1.25" (31.8mm)	2.09" (53.1mm)	1.97" (50.0mm)	0.75" (19.1mm)	0.47" (11.9mm)	1.93" (49.0mm)	3.31" (84.1mm)	0.26" (6.6mm)	304 SS
150THRC4S-300-150	3"x1-1/2"	3" (76.2mm)	4.29" (109.0mm)	4.09" (103.9mm)	0.94" (23.9mm)	0.63" (16.0mm)	1.5" (38.1mm)	2.36" (59.9mm)	2.22" (56.4mm)	0.79" (20.1mm)	0.51" (13.0mm)	1.93" (49.0mm)	3.35" (85.1mm)	0.26" (6.6mm)	304 SS
150THRC4S-300-200	3"x2"	3" (76.2mm)	4.29" (109.0mm)	4.09" (103.9mm)	0.94" (23.9mm)	0.59" (15.0mm)	2" (50.8mm)	2.91" (73.9mm)	2.76" (70.1mm)	0.79" (20.1mm)	0.51" (13.0mm)	1.69" (42.9mm)	3.31" (84.1mm)	0.26" (6.6mm)	304 SS
150THRC4S-300-250	3"x2-1/2"	3" (76.2mm)	4.29" (109.0mm)	4.09" (103.9mm)	0.94" (23.9mm)	0.59" (15.0mm)	2.5" (63.5mm)	3.54" (89.9mm)	3.39" (86.1mm)	1.02" (25.9mm)	0.65" (16.5mm)	1.93" (49.0mm)	3.27" (83.1mm)	0.26" (6.6mm)	304 SS
150THRC4S-400-100	4"x1"	4" (101.6mm)	5.43" (137.9mm)	5.2" (132.1mm)	0.98" (24.9mm)	0.63" (16.0mm)	1" (25.4mm)	1.77" (45.0mm)	1.61" (40.9mm)	0.94" (23.9mm)	0.43" (10.9mm)	2.17" (55.1mm)	3.82" (97.0mm)	0.26" (6.6mm)	304 SS
150THRC4S-400-150	4"x1-1/2"	4" (101.6mm)	5.43" (137.9mm)	5.2" (132.1mm)	0.98" (24.9mm)	0.63" (16.0mm)	1.5" (38.1mm)	2.36" (59.9mm)	2.22" (56.4mm)	0.94" (23.9mm)	0.51" (13.0mm)	2.09" (53.1mm)	3.74" (95.0mm)	0.26" (6.6mm)	304 SS
150THRC4S-400-200	4"x2"	4" (101.6mm)	5.43" (137.9mm)	5.2" (132.1mm)	0.98" (24.9mm)	0.63" (16.0mm)	2" (50.8mm)	2.91" (73.9mm)	2.76" (70.1mm)	0.94" (23.9mm)	0.55" (14.0mm)	2.09" (53.1mm)	3.82" (97.0mm)	0.26" (6.6mm)	304 SS
150THRC4S-400-250	4"x2-1/2"	4" (101.6mm)	5.43" (137.9mm)	5.2" (132.1mm)	0.98" (24.9mm)	0.63" (16.0mm)	2.5" (63.5mm)	3.54" (89.9mm)	3.39" (86.1mm)	1.14" (29.0mm)	0.59" (15.0mm)	2.09" (53.1mm)	3.78" (96.0mm)	0.26" (6.6mm)	304 SS
150THRC4S-400-300	4"x3"	4" (101.6mm)	5.43" (137.9mm)	5.2" (132.1mm)	0.98" (24.9mm)	0.67" (17.0mm)	3" (76.2mm)	4.29" (109.0mm)	4.09" (103.9mm)	0.98" (24.9mm)	0.63" (16.0mm)	2.17" (55.1mm)	3.86" (98.0mm)	0.26" (6.6mm)	304 SS
150THRC6S-025-013	1/4"x1/8"	0.25" (6.4mm)	0.79" (20.1mm)	0.71" (18.0mm)	0.31" (7.9mm)	0.24" (6.1mm)	0.125" (3.2mm)	0.63" (16.0mm)	0.55" (14.0mm)	0.43" (10.9mm)	0.28" (7.1mm)	0.63" (16.0mm)	1.12" (28.4mm)	0.12" (3.0mm)	316 SS
150THRC6S-038-013	3/8"x1/8"	0.375" (9.5mm)	1.00" (25.4mm)	0.91" (23.1mm)	0.37" (9.4mm)	0.28" (7.1mm)	0.125" (3.2mm)	0.63" (16.0mm)	0.55" (14.0mm)	0.47" (11.9mm)	0.24" (6.1mm)	0.91" (23.1mm)	1.61" (40.9mm)	0.12" (3.0mm)	316 SS
150THRC6S-038-025	3/8"x1/4"	0.375" (9.5mm)	1.00" (25.4mm)	0.91" (23.1mm)	0.38" (9.7mm)	0.28" (7.1mm)	0.25" (6.4mm)	0.79" (20.1mm)	0.71" (18.0mm)	0.51" (13.0mm)	0.24" (6.1mm)	0.91" (23.1mm)	1.61" (40.9mm)	0.12" (3.0mm)	316 SS
150THRC6S-050-013	1/2"x1/8"	0.5" (12.7mm)	1.18" (30.0mm)	1.10" (27.9mm)	0.39" (9.9mm)	0.31" (7.9mm)	0.125" (3.2mm)	0.63" (16.0mm)	0.55" (14.0mm)	0.35" (8.9mm)	0.28" (7.1mm)	0.94" (23.9mm)	1.77" (45.0mm)	0.10" (2.5mm)	316 SS
150THRC6S-050-025	1/2"x1/4"	0.5" (12.7mm)	1.18" (30.0mm)	1.10" (27.9mm)	0.39" (9.9mm)	0.31" (7.9mm)	0.25" (6.4mm)	0.79" (20.1mm)	0.71" (18.0mm)	0.39" (9.9mm)	0.28" (7.1mm)	0.94" (23.9mm)	1.77" (45.0mm)	0.10" (2.5mm)	316 SS
150THRC6S-050-038	1/2"x3/8"	0.5" (12.7mm)	1.18" (30.0mm)	1.10" (27.9mm)	0.39" (9.9mm)	0.31" (7.9mm)	0.375" (9.5mm)	1.00" (25.4mm)	0.91" (23.1mm)	0.39" (9.9mm)	0.31" (7.9mm)	0.94" (23.9mm)	1.77" (45.0mm)	0.10" (2.5mm)	316 SS
150THRC6S-075-013	3/4"x1/8"	0.75" (19.1mm)	1.42" (36.1mm)	1.30" (33.0mm)	0.39" (9.9mm)	0.35" (8.9mm)	0.125" (3.2mm)	0.63" (16.0mm)	0.55" (14.0mm)	0.43" (10.9mm)	0.31" (7.9mm)	0.87" (22.1mm)	1.77" (45.0mm)	0.12" (3.0mm)	316 SS
150THRC6S-075-025	3/4"x1/4"	0.75" (19.1mm)	1.42" (36.1mm)	1.30" (33.0mm)	0.39" (9.9mm)	0.35" (8.9mm)	0.25" (6.4mm)	0.79" (20.1mm)	0.71" (18.0mm)	0.43" (10.9mm)	0.31" (7.9mm)	1.02" (25.9mm)	1.77" (45.0mm)	0.12" (3.0mm)	316 SS
150THRC6S-075-038	3/4"x3/8"	0.75" (19.1mm)	1.42" (36.1mm)	1.30" (33.0mm)	0.39" (9.9mm)	0.35" (8.9mm)	0.375" (9.5mm)	1.00" (25.4mm)	0.91" (23.1mm)	0.59" (15.0mm)	0.31" (7.9mm)	0.98" (24.9mm)	1.77" (45.0mm)	0.12" (3.0mm)	316 SS
150THRC6S-075-050	3/4"x1/2"	0.75" (19.1mm)	1.42" (36.1mm)	1.30" (33.0mm)	0.39" (9.9mm)	0.35" (8.9mm)	0.5" (12.7mm)	1.18" (30.0mm)	1.10" (27.9mm)	0.59" (15.0mm)	0.31" (7.9mm)	0.98" (24.9mm)	1.77" (45.0mm)	0.12" (3.0mm)	316 SS
150THRC6S-100-013	1"x1/8"	1" (25.4mm)	1.77" (45.0mm)	1.65" (41.9mm)	0.55" (14.0mm)	0.35" (8.9mm)	0.125" (3.2mm)	0.63" (16.0mm)	0.55" (14.0mm)	0.47" (11.9mm)	0.31" (7.9mm)	1.02" (25.9mm)	1.97" (50.0mm)	0.12" (3.0mm)	316 SS
150THRC6S-100-025	1"x1/4"	1" (25.4mm)	1.77" (45.0mm)	1.65" (41.9mm)	0.55" (14.0mm)	0.43" (10.9mm)	0.25" (6.4mm)	0.79" (20.1mm)	0.71" (18.0mm)	0.47" (11.9mm)	0.31" (7.9mm)	1.10" (27.9mm)	1.97" (50.0mm)	0.12" (3.0mm)	316 SS
150THRC6S-100-038	1"x3/8"	1" (25.4mm)	1.77" (45.0mm)	1.65" (41.9mm)	0.55" (14.0mm)	0.43" (10.9mm)	0.375" (9.5mm)	1.00" (25.4mm)	0.91" (23.1mm)	0.51" (13.0mm)	0.31" (7.9mm)	1.10" (27.9mm)	1.97" (50.0mm)	0.12" (3.0mm)	316 SS
150THRC6S-100-050	1"x1/2"	1" (25.4mm)	1.77" (45.0mm)	1.65" (41.9mm)	0.55" (14.0mm)	0.43" (10.9mm)	0.5" (12.7mm)	1.18" (30.0mm)	1.10" (27.9mm)	0.51" (13.0mm)	0.35" (8.9mm)	1.14" (29.0mm)	1.97" (50.0mm)	0.12" (3.0mm)	316 SS
150THRC6S-100-075	1"x3/4"	1" (25.4mm)	1.77" (45.0mm)	1.65" (41.9mm)	0.55" (14.0mm)	0.43" (10.9mm)	0.75" (19.1mm)	1.42" (36.1mm)	1.30" (33.0mm)	0.55" (14.0mm)	0.43" (10.9mm)	1.10" (27.9mm)	1.97" (50.0mm)	0.12" (3.0mm)	316 SS
150THRC6S-125-025	1-1/4"x1/4"	1.25" (31.8mm)	2.09" (53.1mm)	1.97" (50.0mm)	0.71" (18.0mm)	0.43" (10.9mm)	0.25" (6.4mm)	0.79" (20.1mm)	0.71" (18.0mm)	0.59" (15.0mm)	0.24" (6.1mm)	1.14" (29.0mm)	1.97" (50.0mm)	0.14" (3.6mm)	316 SS
150THRC6S-125-038	1-1/4"x3/8"	1.25" (31.8mm)	2.09" (53.1mm)	1.97" (50.0mm)	0.71" (18.0mm)	0.43" (10.9mm)	0.375" (9.5mm)	1.00" (25.4mm)	0.91" (23.1mm)	0.47" (11.9mm)	0.31" (7.9mm)	1.14" (29.0mm)	1.97" (50.0mm)	0.14" (3.6mm)	316 SS
150THRC6S-125-050	1-1/4"x1/2"	1.25" (31.8mm)	2.09" (53.1mm)	1.97" (50.0mm)	0.63" (16.0mm)	0.43" (10.9mm)	0.5" (12.7mm)	1.18" (30.0mm)	1.10" (27.9mm)	0.51" (13.0mm)	0.39" (9.9mm)	1.18" (30.0mm)	1.97" (50.0mm)	0.14" (3.6mm)	316 SS
150THRC6S-125-075	1-1/4"x3/4"	1.25" (31.8mm)	2.09" (53.1mm)	1.97" (50.0mm)	0.63" (16.0mm)	0.47" (11.9mm)	0.75" (19.1mm)	1.42" (36.1mm)	1.30" (33.0mm)	0.51" (13.0mm)	0.39" (9.9mm)	1.18" (30.0mm)	1.97" (50.0mm)	0.14" (3.6mm)	316 SS
150THRC6S-125-100	1-1/4"x1"	1.25" (31.8mm)	2.09" (53.1mm)	1.97" (50.0mm)	0.63" (16.0mm)	0.47" (11.9mm)	1" (25.4mm)	1.77" (45.0mm)	1.61" (40.9mm)	0.71" (18.0mm)	0.43" (10.9mm)	1.18" (30.0mm)	1.97" (50.0mm)	0.14" (3.6mm)	316 SS
150THRC6S-150-025	1-1/2"x1/4"	1.5" (38.1mm)	2.36" (59.9mm)	2.22" (56.4mm)	0.71" (18.0mm)	0.47" (11.9mm)	0.25" (6.4mm)	0.79" (20.1mm)	0.71" (18.0mm)	0.71" (18.0mm)	0.24" (6.1mm)	1.22" (31.0mm)	2.24" (56.9mm)	0.14" (3.6mm)	316 SS
150THRC6S-150-038	1-1/2"x3/8"	1.5" (38.1mm)	2.36" (59.9mm)	2.22" (56.4mm)	0.71" (18.0mm)	0.47" (11.9mm)	0.375" (9.5mm)	1.00" (25.4mm)	0.91" (23.1mm)	0.71" (18.0mm)	0.31" (7.9mm)	1.22" (31.0mm)	2.24" (56.9mm)	0.14" (3.6mm)	316 SS
150THRC6S-150-050	1-1/2"x1/2"	1.5" (38.1mm)	2.36" (59.9mm)	2.22" (56.4mm)	0.63" (16.0mm)	0.47" (11.9mm)	0.5" (12.7mm)	1.18" (30.0mm)	1.10" (27.9mm)	0.57" (14.5mm)	0.35" (8.9mm)	1.22" (31.0mm)	2.24" (56.9mm)	0.14" (3.6mm)	316 SS
150THRC6S-150-075	1-1/2"x3/4"	1.5" (38.1mm)	2.36" (59.9mm)	2.22" (56.4mm)	0.63" (16.0mm)	0.47" (11.9mm)	0.75" (19.1mm)	1.42" (36.1mm)	1.30" (33.0mm)	0.61" (15.5mm)	0.39" (9.9mm)	1.22" (31.0mm)	2.24" (56.9mm)	0.14" (3.6mm)	316 SS
150THRC6S-150-100	1-1/2"x1"	1.5" (38.1mm)	2.36" (59.9mm)	2.22" (56.4mm)	0.63" (16.0mm)	0.47" (11.9mm)	1" (25.4mm)	1.77" (45.0mm)	1.61" (40.9mm)	0.67" (17.0mm)	0.43" (10.9mm)	1.22" (31.0mm)	2.24" (56.9mm)	0.14" (3.6mm)	316 SS
150THRC6S-150-125	1-1/2"x1-1/4"	1.5" (38.1mm)	2.36" (59.9mm)	2.22" (56.4mm)	0.71" (18.0mm)	0.47" (11.9mm)	1.25" (31.8mm)	2.09" (53.1mm)	1.97" (50.0mm)	0.67" (17.0mm)	0.47" (11.9mm)	1.22" (31.0mm)	2.24" (56.9mm)	0.14" (3.6mm)	316 SS
150THRC6S-200-025	2"x1/4"	2" (50.8mm)	2.91" (73.9mm)	2.76" (70.1mm)	0.71" (18.0mm)	0.51" (13.0mm)	0.25" (6.4mm)	0.79" (20.1mm)	0.71" (18.0mm)	0.63" (16.0mm)	0.20" (5.1mm)	1.50" (38.1mm)	2.64" (67.1mm)	0.16" (4.1mm)	316 SS
150THRC6S-200-038	2"x3/8"	2" (50.8mm)	2.91" (73.9mm)	2.76" (70.1mm)	0.71" (18.0mm)	0.51" (13.0mm)	0.375" (9.5mm)	1.00" (25.4mm)	0.91" (23.1mm)	0.51" (13.0mm)	0.31" (7.9mm)	1.50" (38.1mm)	2.64" (67.1mm)	0.16" (4.1mm)	316 SS
150THRC6S-200-050	2"x1/2"	2" (50.8mm)	2.91" (73.9mm)	2.76" (70.1mm)	0.71" (18.0mm)	0.51" (13.0mm)	0.5" (12.7mm)	1.18" (30.0mm)	1.10" (27.9mm)	0.59" (15.0mm)	0.35" (8.9mm)	1.50" (38.1mm)	2.64" (67.1mm)	0.16" (4.1mm)	316 SS
150THRC6S-200-075	2"x3/4"	2" (50.8mm)	2.91" (73.9mm)	2.76" (70.1mm)	0.71" (18.0mm)	0.51" (13.0mm)	0.75" (19.1mm)	1.42" (36.1mm)	1.30" (33.0mm)	0.69" (17.5mm)	0.39" (9.9mm)	1.50" (38.1mm)	2.64" (67.1mm)	0.16" (4.1mm)	316 SS
150THRC6S-200-100	2"x1"	2" (50.8mm)	2.91" (73.9mm)	2.76" (70.1mm)	0.63" (16.0mm)	0.51" (13.0mm)	1" (25.4mm)	1.77" (45.0mm)	1.61" (40.9mm)	0.67" (17.0mm)	0.43"
